IOTA Silt Cleaning Machine
Cleaning of underground drainage / sewage lines and manholes and wet wells has always been a challenging job for the Municipal Authorities due to its involvement and concerns of human life. Municipal Authorities are somewhat relived with the innovations of high pressure jetting machines and suction machines by which the chocked drainage / sewage lines can be easily cleaned without having the person to enter into sewage lines keeping their lives always at risk. Even though, as on now, Municipal Authorities are dependent on manpower when it comes to cleaning / de- silting of manholes and wet wells and is still an unsolved problem.
Contact us
It has become more challenging with the implications of the directives of Hon'ble supreme court directing all the municipalities to avoid manpower entering into the manholes and wet wells for its cleaning and to explore the possibilities of using mechanized vehicles and equipment for this purpose.
Keeping the above facts in mind the Research & Development wing of Maniar has been able to design and develop advanced and highly innovative machine "D siltman".

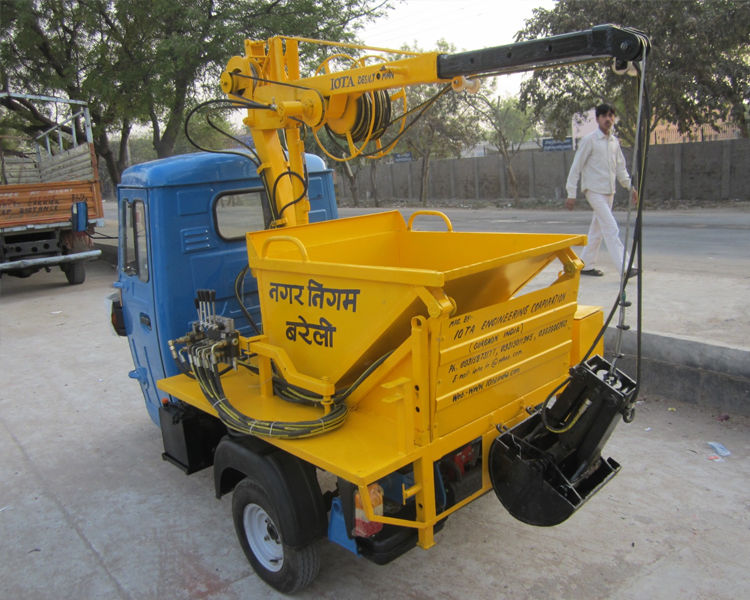

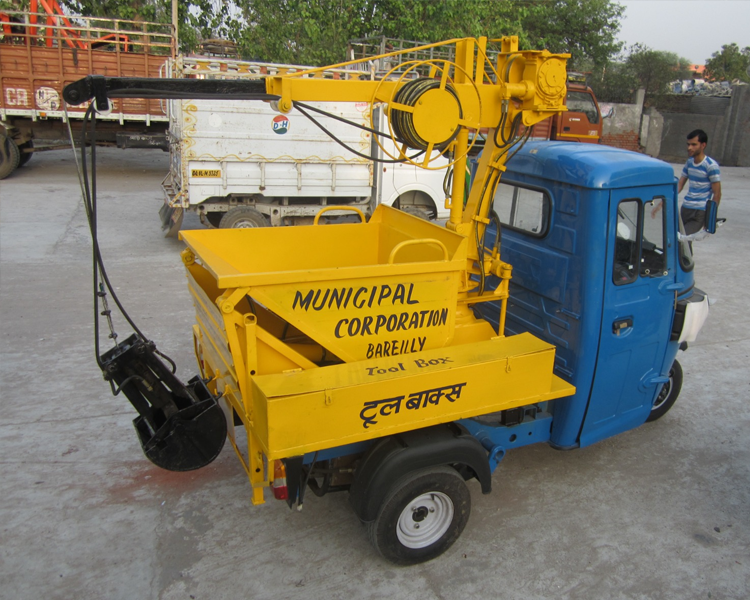

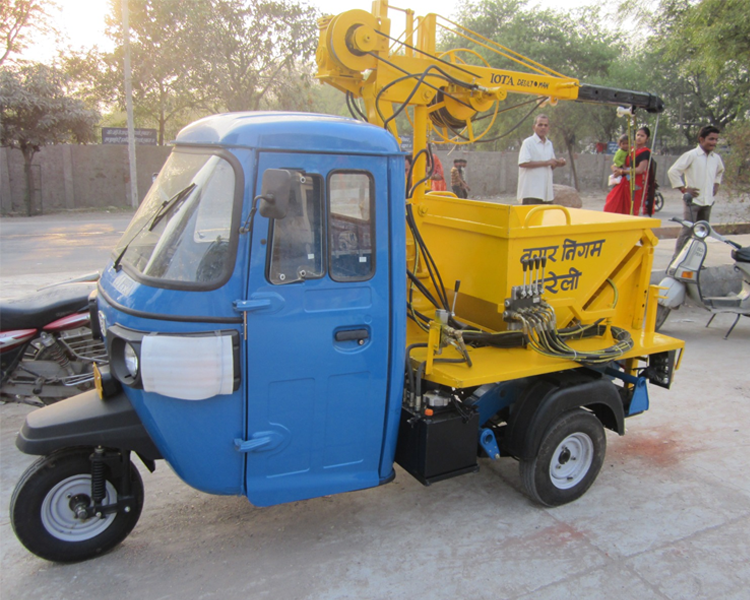

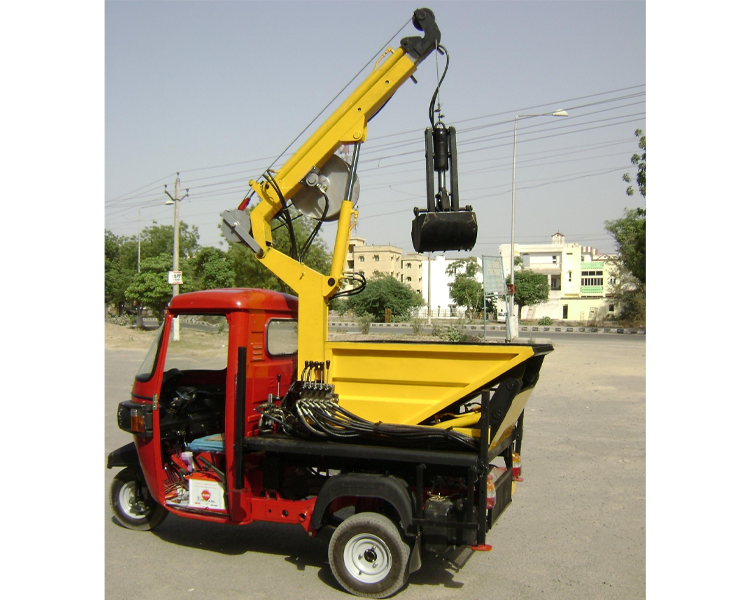

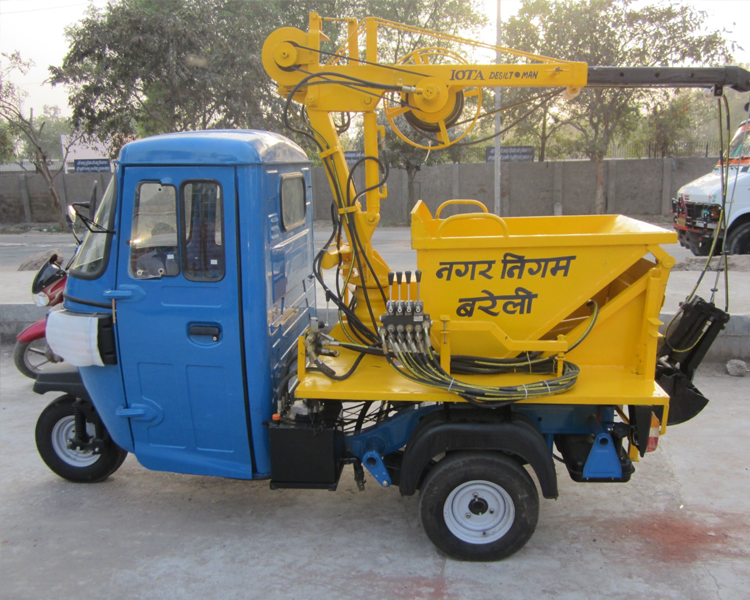

"D Siltman" Hydraulic operated cum winch Drive De-Silting Grab Bucket System developed on 3 & 4 Wheeler is the ideal solution for cleaning of manholes and wet wells. The machine can easily and effectively collect silt/ sludge from depth of 30 to 50 feet or more with the help of a lever control without having the person to enter manholes and wet wells. Fully equipped machine is provided with Telescopic Extendable Boom for extended reach, rear hopper to avoid multiple handling of the sludge, as the sludge can be collected in the rear hopper of the vehicle and can be hydraulically emptied in big containers. Since it is developed on 3 & 4 Wheeler, it can easily move in narrow lanes, bylanes. It is economical and available at the optimum price. D'siltMan does more or less all the operation of Super Sucker / Deep Suction machine at very cost effective price.
Additional Information
| Specification | Details |
|---|---|
| Vehicle | 3-Wheeler |
| Prime Mover | Power taken from vehicle's engine for hydraulic system |
| Max Traveling Depth | 32 feet |
| Safe Load | 25 kg |
| Test Load | 50 kg |
| Swing Angle | 90 degrees both sides |
| Boom Lifting Angle | 45 degrees minimum |
| Boom extension | Manual Boom extension with Locking arrangement |
| Hopper Capacity | 0.3 cubic meters |
| Grab Bucket | |
| Type |
Grab bucket System must be provided as per below specification:- - Four-bar linkage mechanism - Hydraulic operated double-acting cylinder - Molded seamless steel cast side jaws (min. 10mm) - Max grabbing force: 2.8 tons |
×
